Magswitch Bundle
Magswitch Bundle
Magswitch Bundle

Magswitch Bundle

$119.69 $169.00
Sold out

This bundle includes a Magswitch Universal Featherboard and 2 Magswitch MagJig 150s.

Jonathan’s Hot Take:

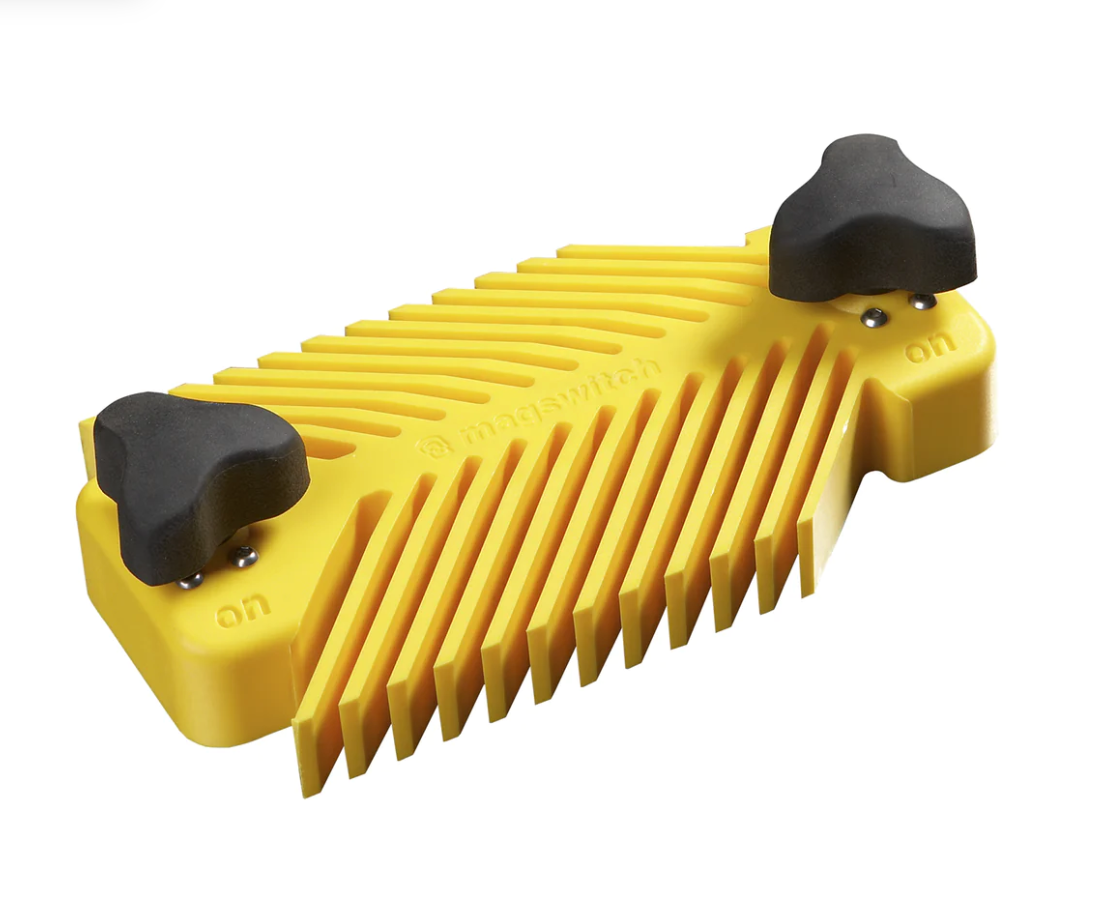

Magswitch Universal Featherboard:

Featherboards are key to accurate and safe rip cuts on the table saw — and none are as easy to use as the Magswitch Universal Featherboard.

Most featherboards need to be locked into a miter slot, limiting the width of boards they’ll work for. With two super strong switchable magnets, this unit can attach anywhere on a cast-iron tabletop.

  • Quick, easy, and precise setup
  • No miter slot limitation
  • Perfect for infeed/outfeed applications
  • Can be used on the left or right side of the blade
  • Easy On/Off Operation.
  • Great for small tables

SPECIFICATIONS

Product Weight: 0.9 lbs / 0.4 kg

Dimensions: 6.9 x 3.9 x 2.1 in / 175.2 x 99 x 53.3 mm

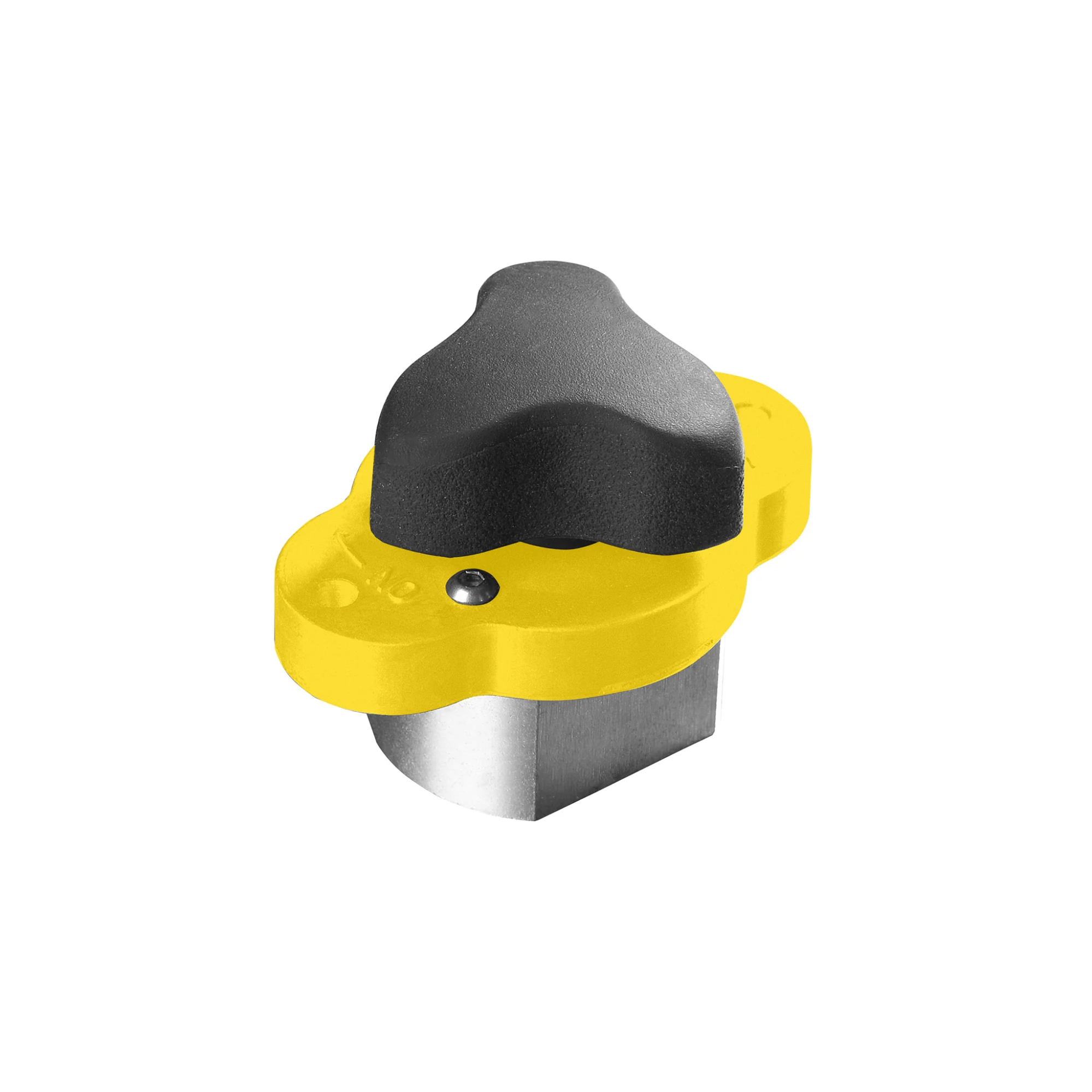

Magswitch MagJig 150:

This is the ultimate addition to any shop jig you need held down on a magnetic surface. Simply drill a hole in a jig, place the MagJig in, and rotate the knob to switch it on for a super solid hold.

A single MagJig 150 has 133 pounds of magnetic hold force.

  • Magnetic field turns completely on and off mechanically
  • Does not use an electrical power source
  • Holds flat and round surfaces of steel
  • 3/4" standoff for flush mount
  • Designed with screw holes to add more security in a fixture
  • Excellent for woodworking, welding, and fabrication

SPECIFICATIONS

Max Breakaway: 133 lbs (60.3 kg) on 1'' steel

2:1 Shear Working Load: 15 lbs (6.8 kg)

Product Weight: 0.2 lbs (0.1 kg)

Dimensions: 2.6 x 1.7 x 2.1 in (66 x 43.1 x 53.3 mm)

Magnetic Pole Footprint: 40 mm x 31 mm
