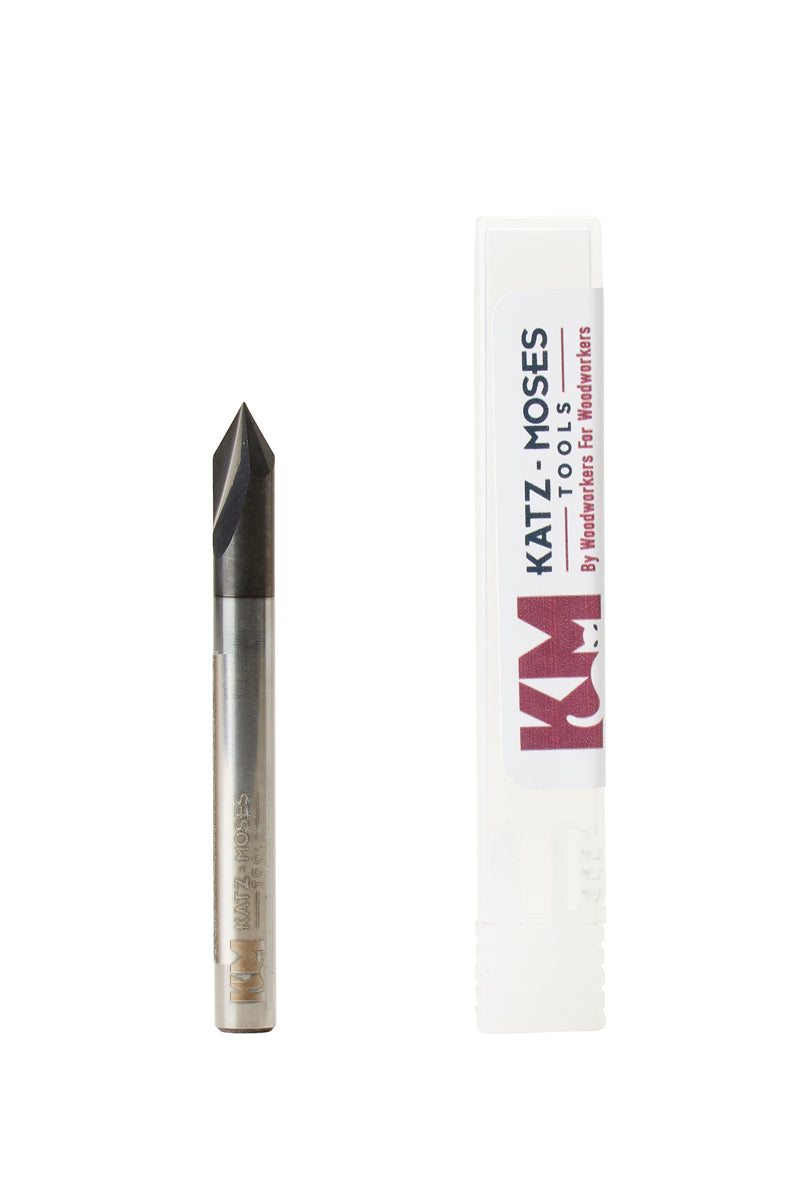

60 Degree V-Groove Bit – 1/4" Shank Bit *Astra Coated*

This is a solid carbide single end engraving tool with 60 degree included angle (30 degrees per side). This type of engraving tool is very popular for engraving on wood or plastic and even on aluminum.

  • Astra Coated
  • Solid Carbide
  • Included angle: 60 degrees
  • Side angle: 30 degrees
  • Tip Size: .005
  • Shank Diameter: 1/4″ (6.35mm)
  • Tool Length: 2-1/2″
  • Made In USA

These tools are coated with a proprietary high performance *Astra coating* that allows higher speed & feed rates as well as 2x the extended tool life & increased lubricity in abrasive material

Jonathan's Hot Take:

This 60 degree V-Bit is really good at deep engravings because it has a narrower cutting edge when compared to a 90/45 degree engraving bit.

These bits provide the HIGHEST VALUE because the Astra Coating makes them last at least 2-4x longer than uncoated bits. This is one of those times that spending a little more upfront saves you a lot of money down the line.

Spiral bits perform 100x better and 100x longer than straight bits. I recommend staying away from straight bits in general, because they dull so much faster and their aggressive cutting profile can be much less safe.

Check out the video in additional resources for more info.

This is a solid carbide single end engraving tool with 60 degree included angle (30 degrees per side). This type of engraving tool is very popular for engraving on wood or plastic and even on aluminum.

This V-Bit Features:

Cutting Tip – .005 inches (.127mm)
Length of Cut – .250 inches (6.35mm)
Included angle – 60 degrees (30 degrees per side)
Solid Carbide – Shank Diameter: 1/4 – Tool Length: 2-1/2 inches

Excellent for Cutting:

  • Aluminum
  • Plastic/Acrylic
  • Brass
  • Wood

What are Engraving V-Bit/V-Groove Bits?

V-bits produce a “V” shaped pass and are used for engraving, particularly for engraving letters and making signs. The small angles and tips provided on these V-shaped engraving bits produce narrow cuts and small, delicate engraving of lettering and lines.

Made in the USA by KM Tools

This data serves as a general guidance only.
  • Soft Woods/ Hard Woods/Plastics/Aluminum
    Spindle Speed- RPM: 16-18K
    Feed Rate – IPM : 40-110″
