Blast Gate PHYSICAL TEMPLATES (4" or 6") - Includes Full Step by Step Build Plans and DXF Files

Style

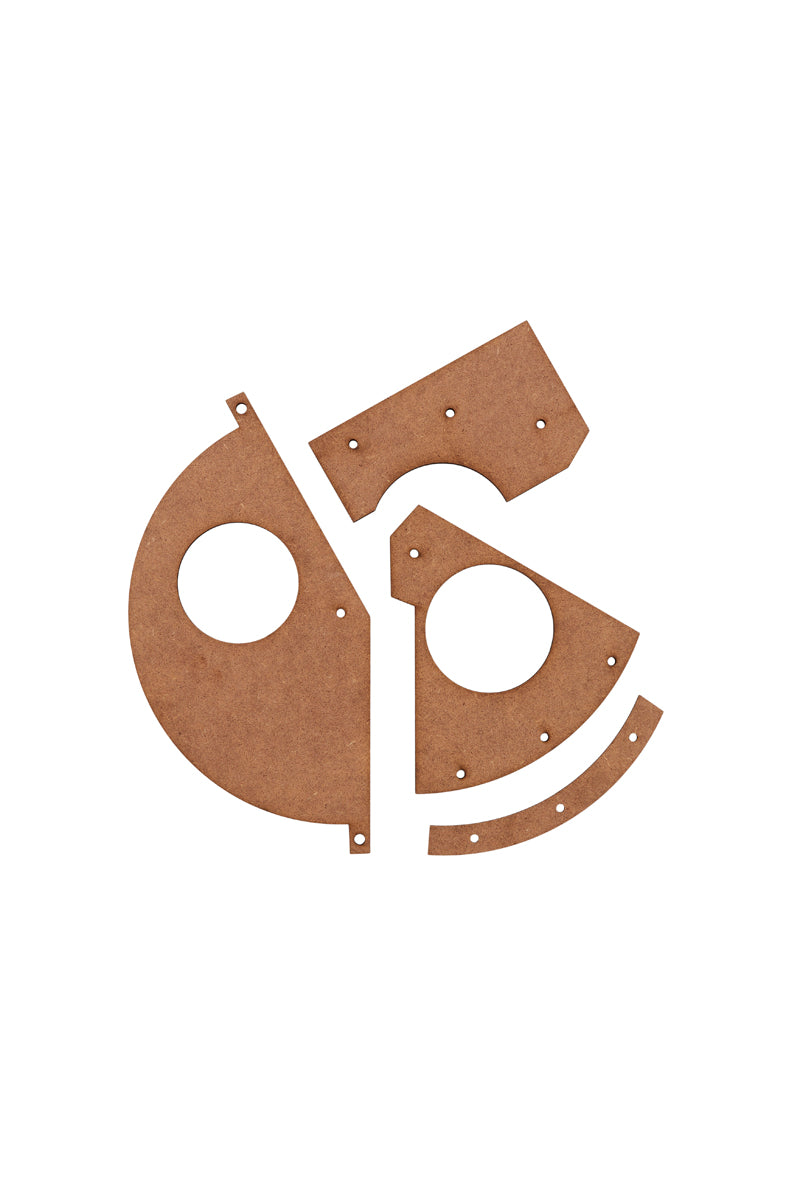

1/4" MDF templates for the (4" or 6") No Leak Blast Gates. These are version 2 and come with the template for the wall mount. They also come with our step by step digital plans and CNC files for the blast gates.

Please see this video on my YouTube Channel https://youtu.be/oj9vlD4gU78 for detailed assembly instructions (don’t forget to subscribe)

Plans include:

Step by step plans with paper templates AND DXF files for importing into your favorite CAD/CAM program to create your CNC tools paths.

Customer Reviews
5.0 Based on 6 Reviews
5 ★
100%
6
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
83reviewers would recommend this product Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
    DE
    03/09/2023
    David E.
    United States United States
    I recommend this product

    Simply saves time, no thinking.

    I'm in the middle of putting my new shop together and could not find my pattern bits for my router. So, I traced them out and used the bandsaw and disc sander. I didn't have any plywood so I used 1/2" MDF, sprayed it with lacquer then a coat of polyurethane. A quick sanding then wax. Thay worked out great.

    DW
    09/05/2022
    Dudley W.
    United States United States
    I recommend this product

    Easy to Use

    Arrived quickly. The templates are great but I used the .dxf files and cut everything out on the CNC. Used the templates to verify the cutouts were perfect. Assembled parts per instructions and installed on my 6” dust collection pipes. Amazing results!

    MB
    05/13/2022
    Mike B.
    United States United States
    I recommend this product

    Blast Gates

    I recommend buying the templates. Rough cut on bandsaw and used template and pattern bit on router table. Very little sanding to finish. Mike B

    JS
    04/03/2022
    Jeffrey S.
    United States United States
    I recommend this product

    Confused

    I thought I was getting a 6” template. The one that arrived is 4”.

    SO
    03/20/2022
    Steve O.
    United States United States
    I recommend this product

    Blast gate templates

    I love these templates. I have made several blast gates for my shop and they don’t leak whatsoever!
