CMT Orange Tools Roundover Bit - Carbide-Tipped
CMT Orange Tools Roundover Bit - Carbide-Tipped

CMT Orange Tools Roundover Bit - Carbide-Tipped

Sale price$26.77 Regular price$39.30
Save $12.53
Size:1/8"
Shank:1/4"
Quantity:

Product Description

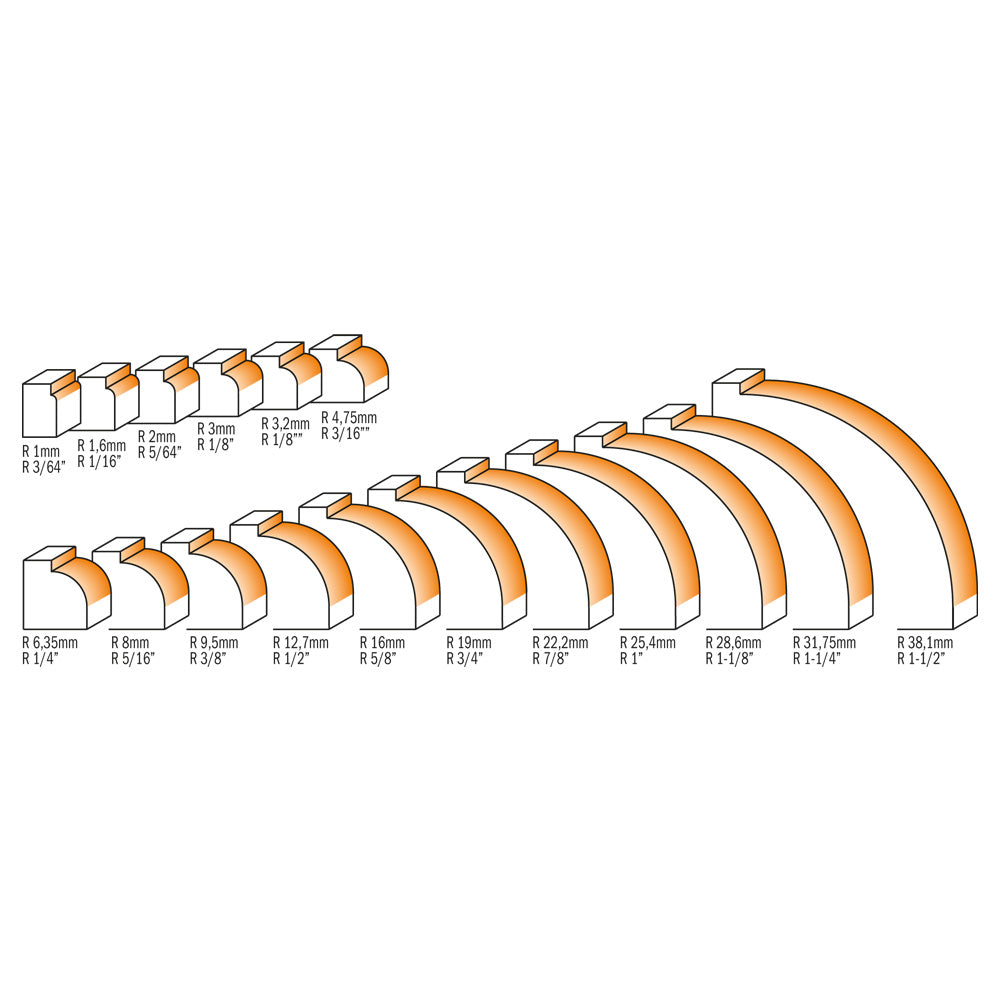

The smaller bearing on the CMT Beading bits makes a delicate inset at the base of the cut, giving you the advantage of an extra decorative option. Be sure to keep the black bearing washer right side up to correspond with the bearing rotation when reassembling the bearing. Improper reassembly can cause the bit to unscrew. All CMT roundover bits have a 12,7mm (1/2") bearing diameter with the exception of the radius 28,6mm (1-1/8") and 31,7mm (1-1/4") bits which have a 19mm (3/4") bearing diameter. You have 13 different radii to choose from, the majority having 5 shank diameter options. All bits are made of Fatigue Proof® steel and have carbide-tipped cutting edges.

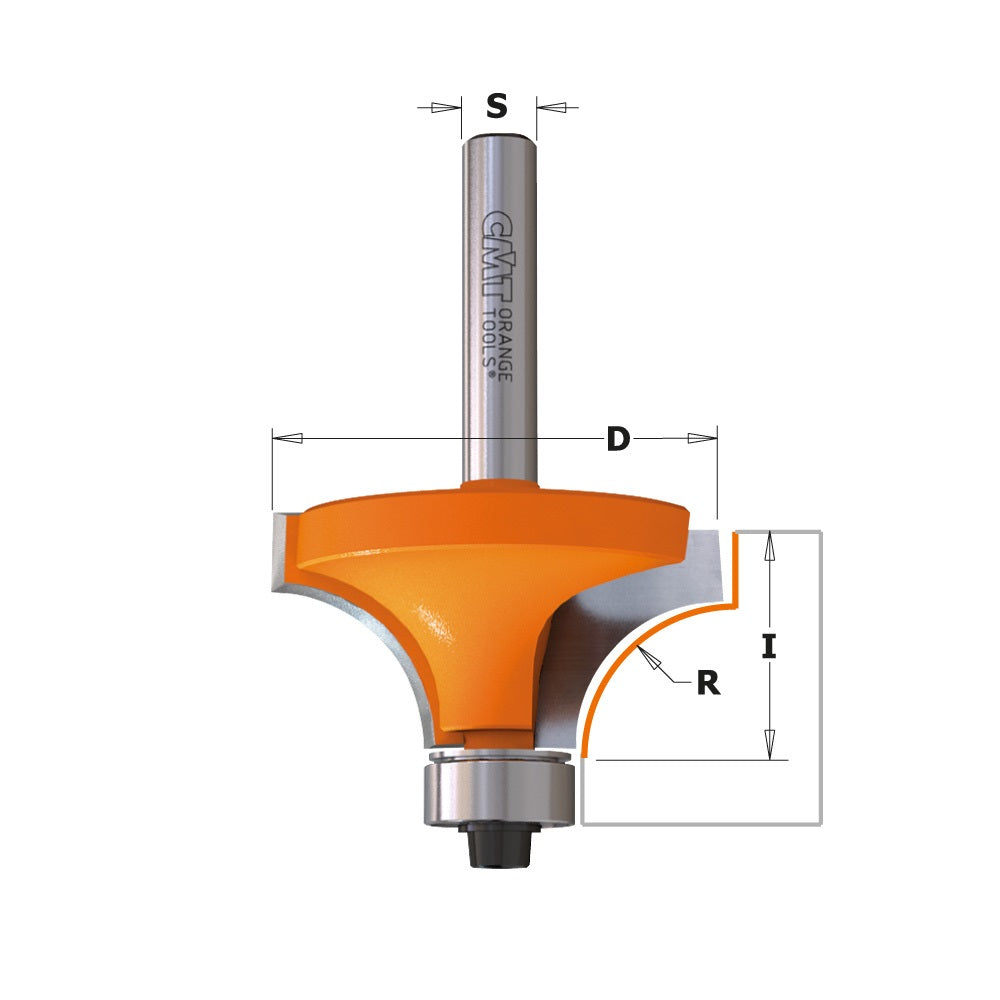

SKU

D

I

L

S

R

838.190.11

3/4"

1/2"

2-9/64"

1/4"

1/8"

838.254.11

1"

1/2"

2-9/64"

1/4"

1/4"

838.317.11

1-1/4"

5/8"

2-1/4"

1/4"

3/8"

838.380.11

1-1/2"

3/4"

2-25/64"

1/4"

1/2"

838.754.11

1"

1/2"

2-5/16"

1/2"

1/4"

838.817.11

1-1/4"

5/8"

2-7/16"

1/2"

3/8"

838.880.11

1-1/2"

3/4"

2-41/64"

1/2"

1/2"

838.990.11

2"

1"

2-57/64"

1/2"

3/4"



Shop tips: The CMT 1,6mm (1/16") radius roundover bit is excellent for finishing laminates. Virtually eliminates the filing required when using conventional trim bits.



Safety tips: use caution when working with large diameter bits and make more than one pass to gradually remove stock. Pay particular attention when routing small pieces; and always rout on a router table equipped with a fence.



Bits featuring radius from 25,4mm (1") to 38,1mm (1-1/2") are to be used only on router table.



CMT carbide tipped router bits produce flawless profiles due to the following features:

SUPERIOR HIGH STRENGTH STEEL BODIES: CMT uses only high-quality, solid bar stock sourced from Switzerland, which provides exceptional resistance to fatigue and abrasion. Larger diameter bodies are heat forged before turning into precise bit bodies. This extra step produces a radial grain orientation which offers large diameter bits extra strength and durability. All machining fully automated ensuring the shanks and bodies are accurate and perfectly balanced.

ANTI-KICKBACK DESIGN: This design controls the depth of cut and minimizes the chance of kickback, reducing your risk of injury.

SINTERHIP HI-DENSITY INDUSTRIAL CHROME CARBIDE: CMT uses specially formulating chrome carbide specially designed to cut wood and laminates. A new process called SinterHIP (Hot Isostatic Pressing), helps prevent material failure and increases cutting life.

TRI-METAL BRAZING: CMTs silver-copper-silver brazing “sandwich” provides a tight bond between the steel and the carbide, with a shock absorbing effect to protect the carbide tips when cutting harder woods and reduces the chance of failed welds.

NON-STICK ORANGE SHIELD COATING®: Prevents bit from heating up, reduces pitch build-up, protects against corrosion, and provides a longer bit life.

MULTI-AXIS GRINDING CREATES A MIRROR FINISH LASTING 3X LONGER: Sharpening is done to extreme precision on multi-axis CNC machines. Each bevel and angle are ground or sharpened to the micron, to produce a cutting edge that is both razor sharp, yet extremely durable.
