Magswitch Drill Press Fence Pro
Magswitch Drill Press Fence Pro
Magswitch Drill Press Fence Pro

Magswitch Drill Press Fence Pro

Sale price$288.99
Quantity:

Please Note: We are expected to receive these Magswitch Drill Press Fences at our warehouse on December 1st. Orders containing this product will be fulfilled shortly thereafter.

Jonathan’s Hot Take:

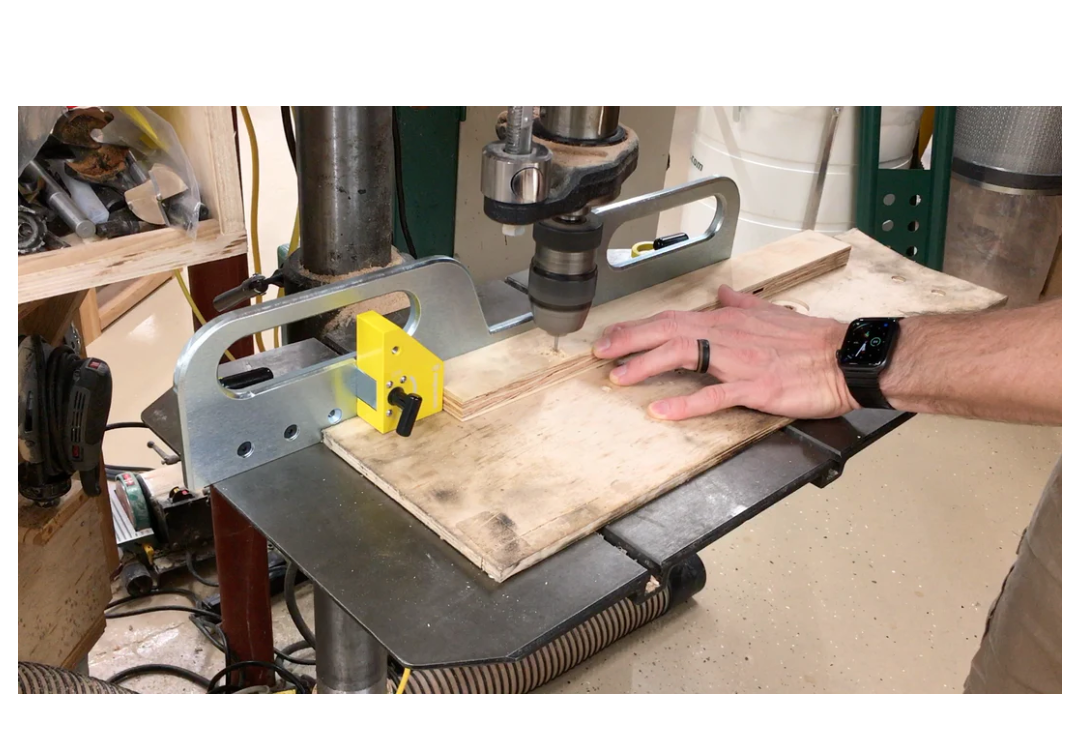

This is the EASIEST drill press fence to set up out there — and it’s guaranteed to hold your workpieces steady exactly where you want them.

The powerful switchable magnets let you quickly position and adjust the fence…

And the included magnetic stop block makes it easy to set up repeatable operations.

The cut away in the center of the vertical fence ensures it won’t get in the way of the drill chuck, and the whole thing can quickly be removed when you don’t need it.

Best of all, the fence and stop block work with sacrificial boards below your workpiece to limit tearout.

At 22” long by 4 5/16” high, this is the ideal fence for larger drill press tables.

SPECIFICATIONS

Maximum Breakaway Force: 291.01 lbs / 132 kg

Maximum Shear: 41.89 lbs / 19 kg

Full Saturation Thickness: 0.24 in / 6 mm

Overall Height (Max): 4.29 in / 109 mm

Overall Length: 21 in / 533.4 mm

Overall Width : 2.72 in / 69.15 mm

Net Weight: 8.38 lbs / 3.8 kg

Magnetic Pole Footprint: 1.57 x 1.22 (2x) in / 40 x 31 (2x) mm
