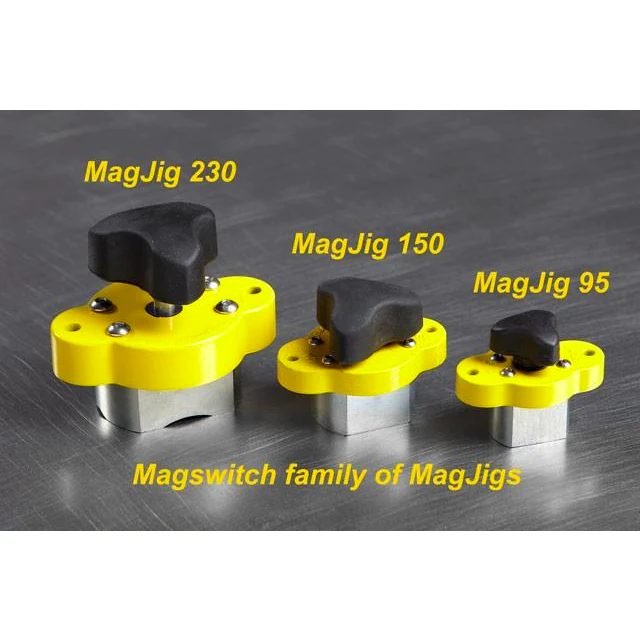

Magswitch MagJig 95

Jonathan’s Hot Take:

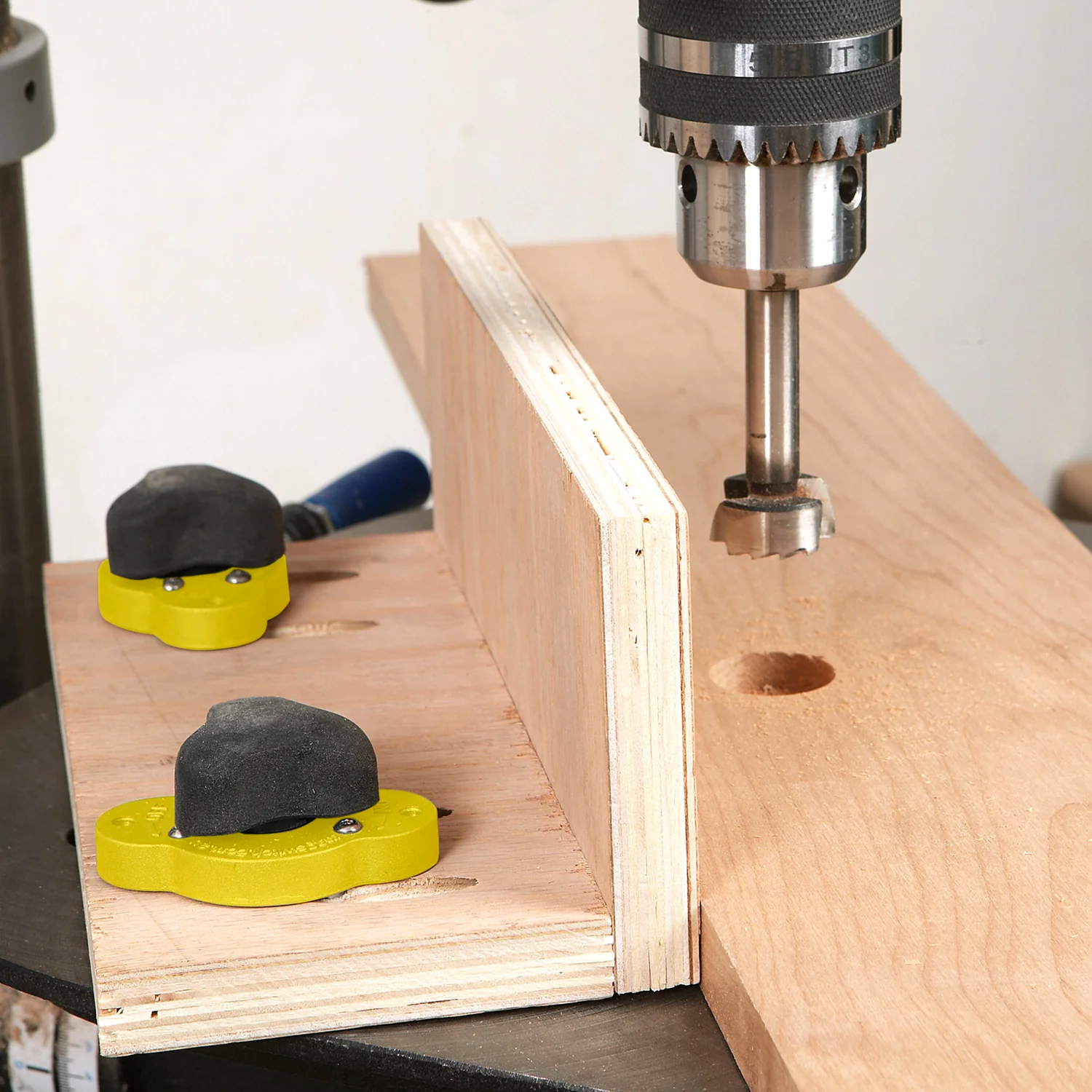

The Magswitch magnetic fixturing clamp will secure your fixtures and jigs into place. Rotate the knob to turn on and off 95 pounds of magnetic hold force. Simply drill a hole in a fixture and place the MagJig in to use for downward pressure clamping.

• Magnetic field turns completely on and off mechanically
• Does not use an electrical power source
• Magnet stays clean
• Holds flat and round surfaces of steel
• 3/4" standoff for flush mount
• Designed with screw holes to add more security in a fixture
• Excellent for woodworking, welding, and fabrication

SPECIFICATIONS

Max Breakaway: 95 lbs (43 kg)

2:1 Shear Working Load: 9 lbs (4 kg)

Product Weight: 0.2 lbs (0.1 kg)

Dimensions: 2.2 x 1.3 x 1.8 in (55.8 x 33 x 45.7 mm)

Magnetic Pole Footprint: 30 mm x 21 mm (1.18 in x 0.82 in)
